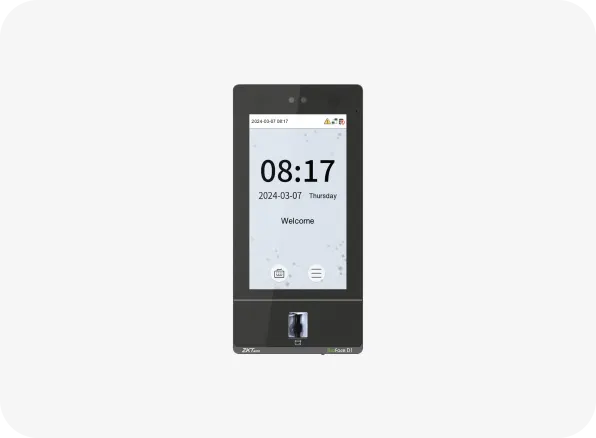

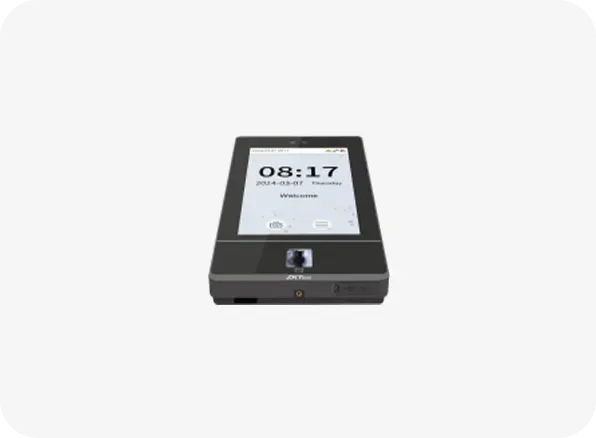

Product Specification of ZKTeco BioFace D1
- 7" TFT Color Touch LED Screen (600 × 1024)
- Linux Operating System
- WDR Binocular Camera (1MP)
- Dual Core 1GHz CPU
- 512MB RAM / 8GB ROM
- In-Glass Fingerprint Sensor (Z-ID)
- Fingerprint Templates: 10,000 (1:N)
- Face Templates: 10,000 (1:N)
- Users: 50,000
- Cards: 50,000
- Transactions: 300,000
- Face / Fingerprint / Card / Password (Virtual Keypad)
- Verification Speed: < 0.5 sec (Fingerprint), < 0.35 sec (Face)
- Facial Recognition Distance: 30 cm – 200 cm
- False Acceptance Rate (FAR): ? 0.01% (Face), ? 0.0001% (Fingerprint)
- TCP/IP
- Wi-Fi (Optional)
- Wiegand (Input / Output)
- RS485
- USB (Type A – USB Drive Only)
- Electric Lock / Door Sensor / Exit Button
- IP65 Protection (Dustproof & Waterproof)
- Operating Temperature: -5°C to 45°C
- Operating Humidity: 10% – 90% RH
- Wall-mount Installation
- Dimensions: 238 × 115 × 22.3 mm
- Net Weight: 0.622 kg
- ZKBio CVSecurity
- ZKBio CVAccess
- BioTime / BioTime Cloud
- CE, FCC, RoHS
- ISO9001, ISO14001
-
Display & System
- 7" TFT Color Touch LED Screen (600 × 1024)
- Linux Operating System
- WDR Binocular Camera (1MP)
-
Hardware
- Dual Core 1GHz CPU
- 512MB RAM / 8GB ROM
- In-Glass Fingerprint Sensor (Z-ID)
-
Capacity
- Fingerprint Templates: 10,000 (1:N)
- Face Templates: 10,000 (1:N)
- Users: 50,000
- Cards: 50,000
- Transactions: 300,000
-
Authentication Methods
- Face / Fingerprint / Card / Password (Virtual Keypad)
-
Biometric Performance
- Verification Speed: < 0.5 sec (Fingerprint), < 0.35 sec (Face)
- Facial Recognition Distance: 30 cm – 200 cm
- False Acceptance Rate (FAR): ? 0.01% (Face), ? 0.0001% (Fingerprint)
-
Communication & Interfaces
- TCP/IP
- Wi-Fi (Optional)
- Wiegand (Input / Output)
- RS485
- USB (Type A – USB Drive Only)
- Electric Lock / Door Sensor / Exit Button
-
Protection & Environment
- IP65 Protection (Dustproof & Waterproof)
- Operating Temperature: -5°C to 45°C
- Operating Humidity: 10% – 90% RH
-
Installation & Design

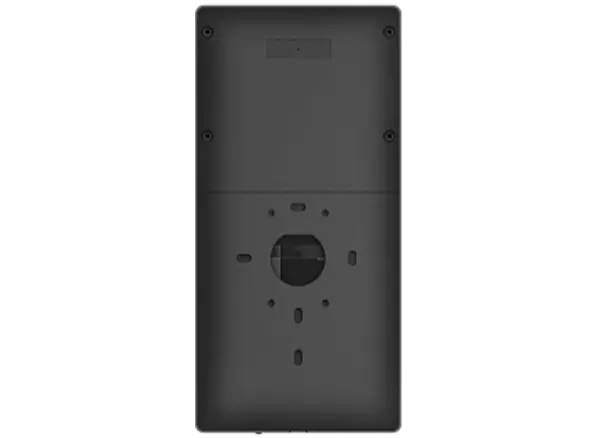

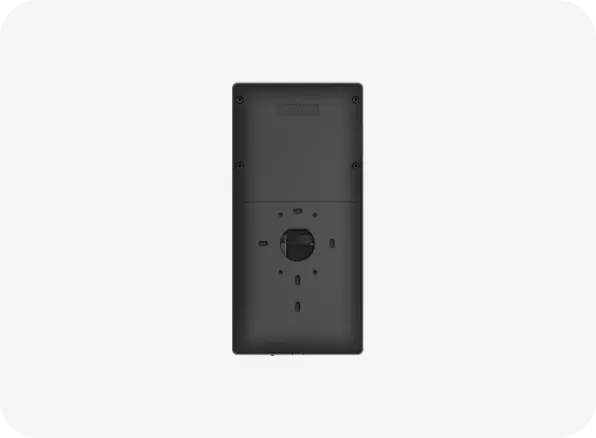

- Wall-mount Installation
- Dimensions: 238 × 115 × 22.3 mm
- Net Weight: 0.622 kg
-
Software Compatibility
- ZKBio CVSecurity
- ZKBio CVAccess
- BioTime / BioTime Cloud
-
Certifications
- CE, FCC, RoHS
- ISO9001, ISO14001
