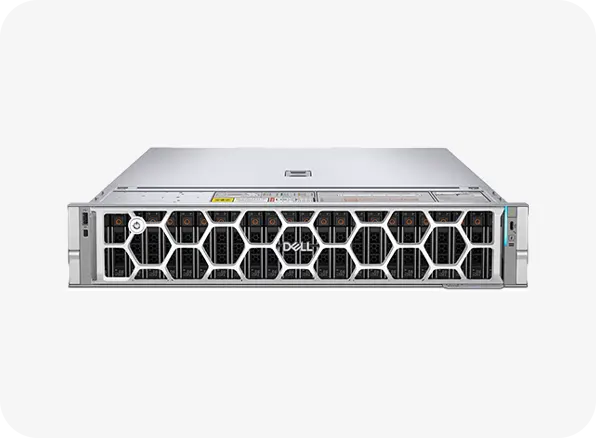

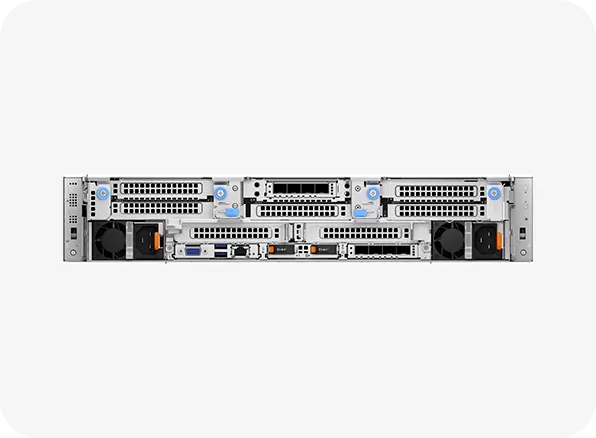

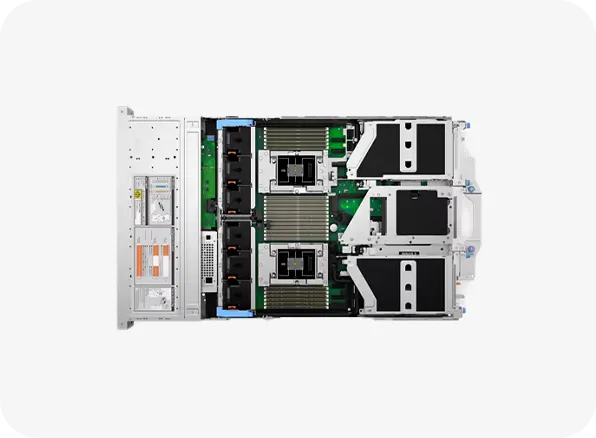

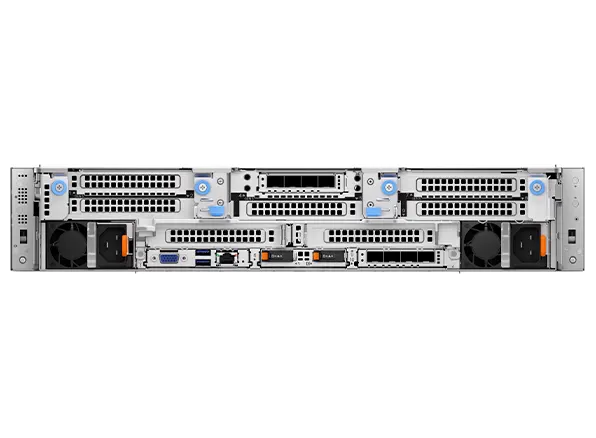

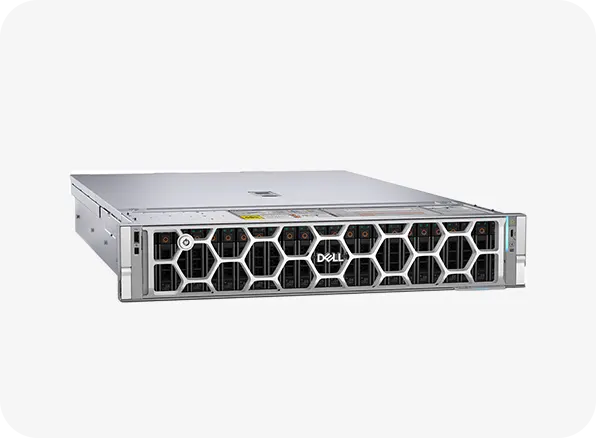

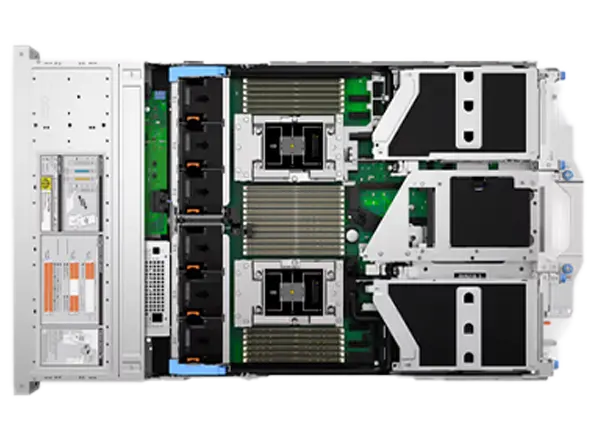

Product Specification of PowerEdge R7725 Rack Server
- Type: Enterprise Rack Server
- Form Factor: 2U Rack
- Socket: Dual-socket (2 x 5th Gen AMD EPYC 9005 Series processors)
- Processor Family: 5th Generation AMD EPYC 9005 Series
- Max Sockets: 2
- Max Cores per Socket: Up to 192 cores
- Max TDP: Up to 500 W per processor
- Max L3 Cache: Up to 384 MB per processor (varies by SKU)
- Memory Type: DDR5 RDIMM (supports 3DS RDIMMs)
- DIMM Slots: 24 DIMM slots (12 per processor)
- Maximum Capacity: Up to 6 TB
- Speed: Up to 6400 MT/s
- Protection: ECC, advanced RAS features
- Drive Bay Options: Up to 40 E3.S NVMe (front)
- Configuration Option: 16 x 2.5-inch + 8 x U.2 NVMe
- Configuration Option: 16 x 3.5-inch SAS/SATA
- Hybrid Option: 12 x 3.5-inch + 4 x 2.5-inch
- Supported Drive Types: SAS, SATA, Nearline SAS, NVMe SSD (2.5-inch, 3.5-inch, E3.S)
- RAID Support: PERC H365i, H965i, H975i controllers (RAID 0, 1, 5, 6, 10, 50, 60)
- PCIe Slots: Up to 8 PCIe Gen5 slots (mix of x8/x16 full-height, full-length)
- OCP Slots: Up to 2 OCP NIC 3.0 (1/10/25/100/400 GbE options)
- Networking: 1 GbE BMC port + PCIe add-in cards (100 GbE, 400 GbE, FC 32/64 Gb)
- GPU Support: Up to 2 single-width GPUs (75W or higher)
- Power: Redundant hot-plug PSUs (800W Platinum/Titanium up to 3200W Titanium HVDC)
- Cooling: Redundant hot-swap fans
- Reliability: Hot-swap components, tool-less chassis, enterprise RAS
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linux (RHEL)
- Canonical Ubuntu Server LTS
- VMware ESXi
- SUSE Linux Enterprise Server (SLES)
- Dell SafeBIOS & Secure Core
- System Lockdown and Cryptographic Erase
- Firmware Update Verification and TPM 2.0
- Secure Boot and Multi-Factor Authentication
- iDRAC9 Enterprise: Embedded remote management
- Dell OpenManage Enterprise: AI-driven centralized management
- APIs: Redfish APIs for automation and orchestration
- Standard Warranty: 3 Years ProSupport (parts, labor, onsite)
- Optional Support: ProSupport Plus, ProSupport Enterprise, extended terms, and AI-driven proactive analytics
-
Server Type / Form Factor
- Type: Enterprise Rack Server
- Form Factor: 2U Rack
- Socket: Dual-socket (2 x 5th Gen AMD EPYC 9005 Series processors)
-
Processor (CPU)
- Processor Family: 5th Generation AMD EPYC 9005 Series
- Max Sockets: 2
- Max Cores per Socket: Up to 192 cores
- Max TDP: Up to 500 W per processor
- Max L3 Cache: Up to 384 MB per processor (varies by SKU)
-
Memory (RAM)
- Memory Type: DDR5 RDIMM (supports 3DS RDIMMs)
- DIMM Slots: 24 DIMM slots (12 per processor)
- Maximum Capacity: Up to 6 TB
- Speed: Up to 6400 MT/s
- Protection: ECC, advanced RAS features
-
Storage
- Drive Bay Options: Up to 40 E3.S NVMe (front)
- Configuration Option: 16 x 2.5-inch + 8 x U.2 NVMe
- Configuration Option: 16 x 3.5-inch SAS/SATA
- Hybrid Option: 12 x 3.5-inch + 4 x 2.5-inch
- Supported Drive Types: SAS, SATA, Nearline SAS, NVMe SSD (2.5-inch, 3.5-inch, E3.S)
- RAID Support: PERC H365i, H965i, H975i controllers (RAID 0, 1, 5, 6, 10, 50, 60)
-
Expansion / Connectivity
- PCIe Slots: Up to 8 PCIe Gen5 slots (mix of x8/x16 full-height, full-length)
- OCP Slots: Up to 2 OCP NIC 3.0 (1/10/25/100/400 GbE options)
- Networking: 1 GbE BMC port + PCIe add-in cards (100 GbE, 400 GbE, FC 32/64 Gb)
- GPU Support: Up to 2 single-width GPUs (75W or higher)
-
Redundancy & Reliability
- Power: Redundant hot-plug PSUs (800W Platinum/Titanium up to 3200W Titanium HVDC)
- Cooling: Redundant hot-swap fans
- Reliability: Hot-swap components, tool-less chassis, enterprise RAS
-
Operating System Support
- Microsoft Windows Server with Hyper-V
- Red Hat Enterprise Linux (RHEL)
- Canonical Ubuntu Server LTS
- VMware ESXi
- SUSE Linux Enterprise Server (SLES)
-
Security Features
- Dell SafeBIOS & Secure Core
- System Lockdown and Cryptographic Erase
- Firmware Update Verification and TPM 2.0
- Secure Boot and Multi-Factor Authentication
-
Management & Monitoring
- iDRAC9 Enterprise: Embedded remote management
- Dell OpenManage Enterprise: AI-driven centralized management
- APIs: Redfish APIs for automation and orchestration
-
Warranty & Support
- Standard Warranty: 3 Years ProSupport (parts, labor, onsite)
- Optional Support: ProSupport Plus, ProSupport Enterprise, extended terms, and AI-driven proactive analytics
