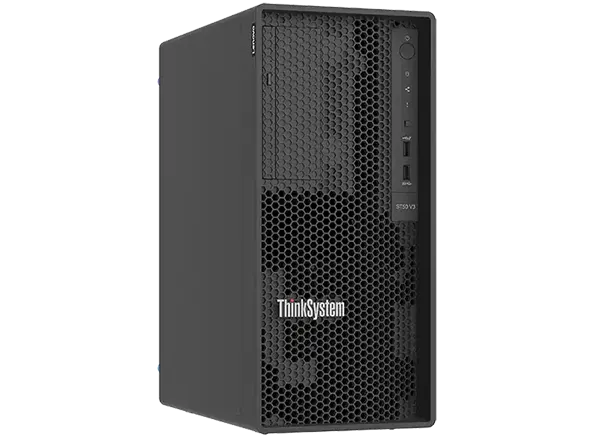

Product Specification of Lenovo ThinkSystem ST50 V3
-
Server Type / Form FactorType: Tower Server | Form Factor: Small form-factor tower (optional rack-mount kit) | Chassis Size: 376mm (H) × 170mm (W) × 316mm (D)
-
Processor (CPU)Processor Family: Intel® Xeon® 6300-series / Intel® Xeon® E-2400 | Max Supported: 1 Processor – up to 8 cores | Max TDP: Up to 95W
-
Memory (RAM)Type: TruDDR5 UDIMM | DIMM Slots: 4 | Max Capacity: Up to 128GB | Speed: 5600MHz
-
StorageDrive Bays: 3x 3.5" HDD/SSD, 1x 2.5" SSD, 2x M.2 SATA SSD | RAID Support: Intel® VROC software RAID; optional hardware RAID
-
Expansion / ConnectivityPCIe Slots: 1x PCIe Gen5 x16, 2x PCIe Gen4 x4 | Network: 2x 1GbE Embedded (Broadcom BCM5720), 1x Dedicated Management Port
-

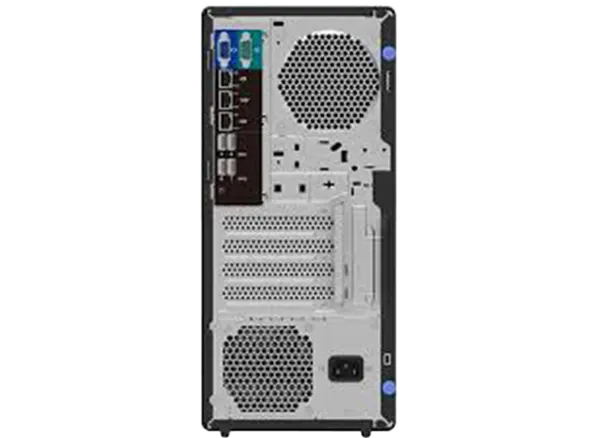

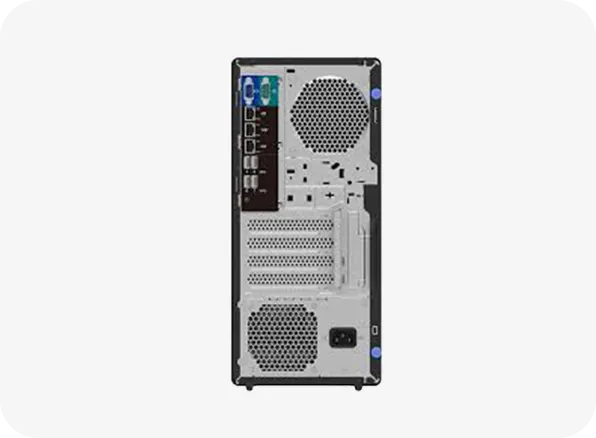

PortsFront: 1x USB 3.2 Gen1, 1x USB 2.0 | Rear: 4x USB 3.2 Gen1, 2x RJ45, 1x Management, 1x Serial, 1x VGA
-
Redundancy & ReliabilityPower: Fixed PSU up to 500W Platinum efficiency | Security: TPM 2.0 support, Platform Firmware Resiliency, optional chassis intrusion
-
Operating System SupportMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere, CentOS
-
Management & MonitoringLenovo XClarity Controller 2 (XCC2) | Centralized deployment and remote management | Firmware updates and monitoring
-
Warranty & SupportStandard: 1- or 3-Year onsite (9×5 NBD) | Optional: 4th and 5th year warranty upgrades
