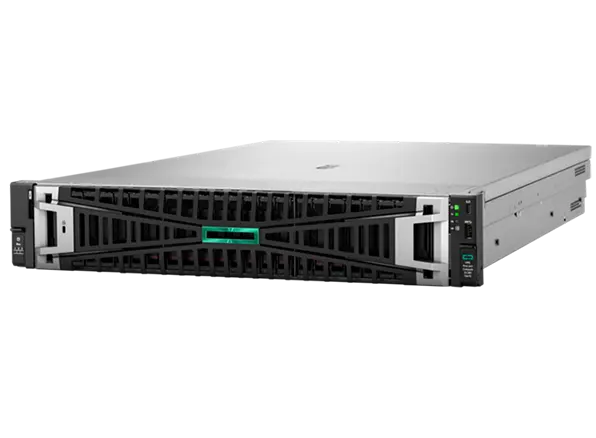

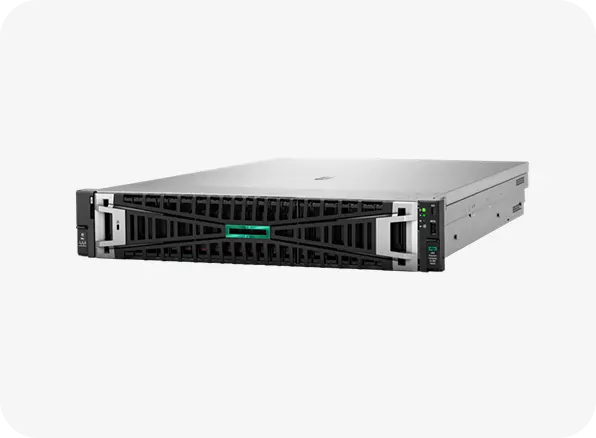

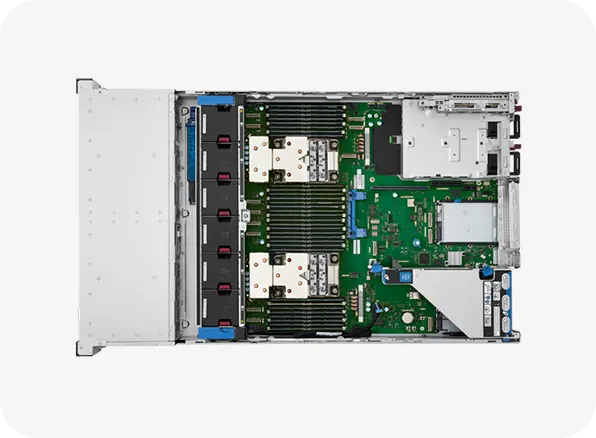

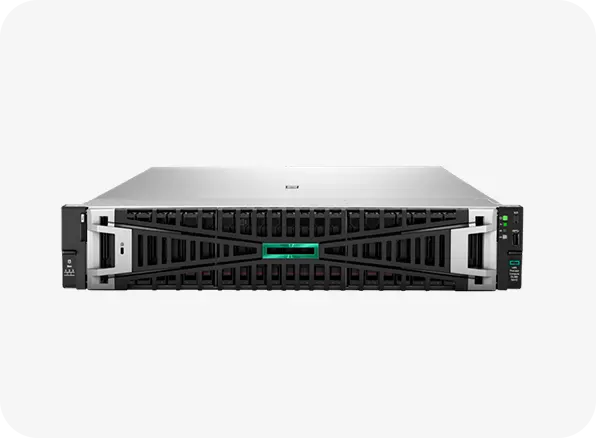

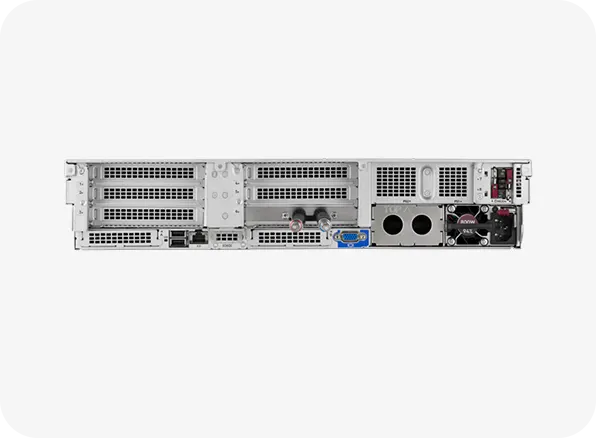

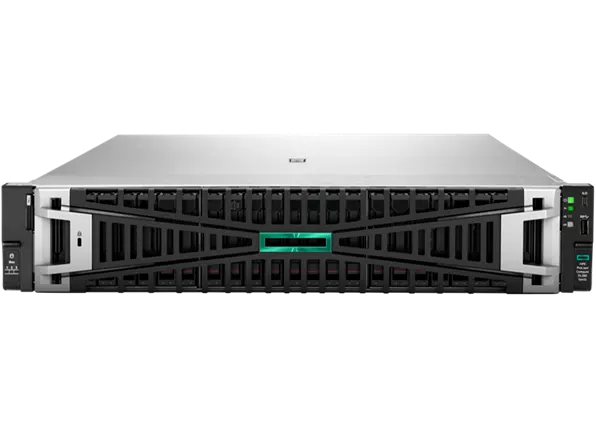

Product Specification of HPE ProLiant Compute DL380 Gen12
- Type:Enterprise Rack Server
- Form Factor: 2U Rack
- Socket: Dual?socket (supports 1 or 2 Intel Xeon 6 processors)
- Processor Family: Intel Xeon 6 Scalable Processors
- Max Sockets: 2
- Cores per Socket: Up to 144 cores
- Max Speed: Up to 3.9 GHz (varies by processor model)
- Memory Channels: 8 channels per processor
- Memory Type: HPE DDR5 Smart Memory (RDIMM)
- DIMM Slots: 32 DIMM slots (16 per processor, 2 DIMMs per channel)
- Maximum Capacity: Up to 8 TB (with 256 GB modules)
- Maximum Speed: Up to 6400 MT/s at 1DPC (depends on CPU and DIMM population)
- Memory Protection: Advanced ECC, online spare, mirroring, combined channel (lockstep)
- Front Drive Options: Up to 36 EDSFF E3.S NVMe drives
- Additional Drive Options: Up to 24 SFF bays (SAS/SATA/NVMe)
- LFF Bays: Up to 12 LFF bays (SAS/SATA)
- Max Internal Storage: 550.8 TB using 36 x 15.3 TB EDSFF NVMe
- Alternative Capacity: 480 TB using LFF SAS/SATA SSDs in 12+4+4 configuration
- RAID Support: HPE Smart Array controllers (RAID 0, 1, 5, 6, 10, 50, 60 – depending on controller)
- PCIe Slots: Multiple PCIe 5.0 slots (including up to four PCIe x16 full-height, full-length slots)
- OCP Slots: Up to two front OCP 3.0 slots for high-speed NICs or accelerators
- Networking: OCP 3.0 FlexibleLOM (choices of 1/10/25/100GbE)
- GPU Support: GPU-accelerated configurations and GPU-performance kits available for AI and HPC workloads
- Power: Redundant hot-plug power supplies (various wattages and efficiency grades)
- Cooling: Redundant hot-plug fans; optional direct-liquid cooling-compatible designs
- Storage: Hot-swap drive bays and RAID-based redundancy options
- Availability Features: HPE-engineered reliability, service-level-ready architectures
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware ESXi
- Canonical Ubuntu
- Oracle Linux
- Silicon Root of Trust
- Secure Boot, Secure Start
- Intel TME (Total Memory Encryption)
- Firmware and Runtime Integrity Monitoring
- UEFI-managed encryption and privilege-separation controls
- Industry-standard compliance (ACPI 6.5, PCIe 5.0, PXE, Wake-on-LAN)
- HPE iLO 7: Embedded management for remote console, BIOS setting, firmware updates, and alerts
- HPE Compute Ops Management: AI-driven operations dashboard and lifecycle automation
- APIs: RESTful / Redfish-based interfaces for integration with third-party tools
- Standard Warranty: 3 Years Parts, 3 Years Labor, 3 Years Onsite (varies by region and contract)
- Optional Support: HPE Pointnext, Foundation Care, Proactive Care, and custom SLAs
-
Server Type / Form Factor
- Type:Enterprise Rack Server
- Form Factor: 2U Rack
- Socket: Dual?socket (supports 1 or 2 Intel Xeon 6 processors)
-
Processor (CPU)
- Processor Family: Intel Xeon 6 Scalable Processors
- Max Sockets: 2
- Cores per Socket: Up to 144 cores
- Max Speed: Up to 3.9 GHz (varies by processor model)
- Memory Channels: 8 channels per processor
-
Memory (RAM)
- Memory Type: HPE DDR5 Smart Memory (RDIMM)
- DIMM Slots: 32 DIMM slots (16 per processor, 2 DIMMs per channel)
- Maximum Capacity: Up to 8 TB (with 256 GB modules)
- Maximum Speed: Up to 6400 MT/s at 1DPC (depends on CPU and DIMM population)
- Memory Protection: Advanced ECC, online spare, mirroring, combined channel (lockstep)
-
Storage
- Front Drive Options: Up to 36 EDSFF E3.S NVMe drives
- Additional Drive Options: Up to 24 SFF bays (SAS/SATA/NVMe)
- LFF Bays: Up to 12 LFF bays (SAS/SATA)
- Max Internal Storage: 550.8 TB using 36 x 15.3 TB EDSFF NVMe
- Alternative Capacity: 480 TB using LFF SAS/SATA SSDs in 12+4+4 configuration
- RAID Support: HPE Smart Array controllers (RAID 0, 1, 5, 6, 10, 50, 60 – depending on controller)
-
Expansion / Connectivity
- PCIe Slots: Multiple PCIe 5.0 slots (including up to four PCIe x16 full-height, full-length slots)
- OCP Slots: Up to two front OCP 3.0 slots for high-speed NICs or accelerators
- Networking: OCP 3.0 FlexibleLOM (choices of 1/10/25/100GbE)
- GPU Support: GPU-accelerated configurations and GPU-performance kits available for AI and HPC workloads
-
Redundancy & Reliability
- Power: Redundant hot-plug power supplies (various wattages and efficiency grades)
- Cooling: Redundant hot-plug fans; optional direct-liquid cooling-compatible designs
- Storage: Hot-swap drive bays and RAID-based redundancy options
- Availability Features: HPE-engineered reliability, service-level-ready architectures
-
Operating System Support
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware ESXi
- Canonical Ubuntu
- Oracle Linux
-
Security Features
- Silicon Root of Trust
- Secure Boot, Secure Start
- Intel TME (Total Memory Encryption)
- Firmware and Runtime Integrity Monitoring
- UEFI-managed encryption and privilege-separation controls
- Industry-standard compliance (ACPI 6.5, PCIe 5.0, PXE, Wake-on-LAN)
-
Management & Monitoring
- HPE iLO 7: Embedded management for remote console, BIOS setting, firmware updates, and alerts
- HPE Compute Ops Management: AI-driven operations dashboard and lifecycle automation
- APIs: RESTful / Redfish-based interfaces for integration with third-party tools
-
Warranty & Support
- Standard Warranty: 3 Years Parts, 3 Years Labor, 3 Years Onsite (varies by region and contract)
- Optional Support: HPE Pointnext, Foundation Care, Proactive Care, and custom SLAs
