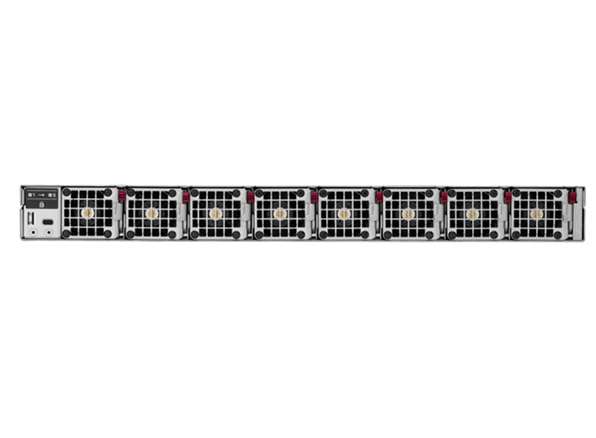

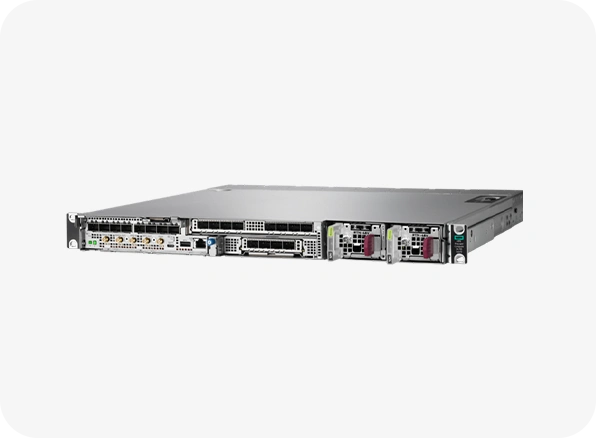

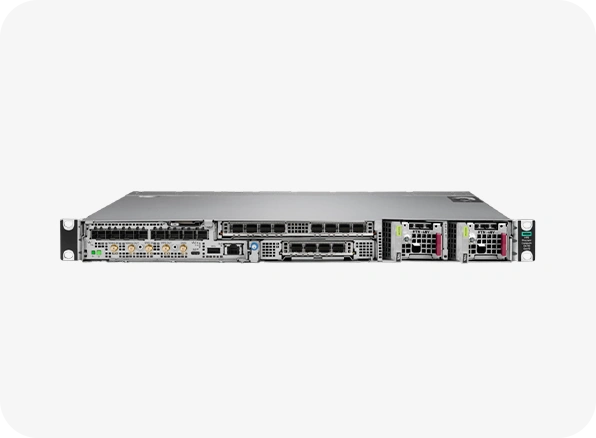

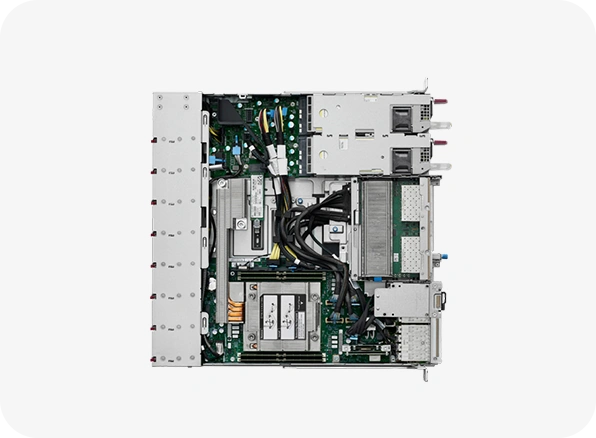

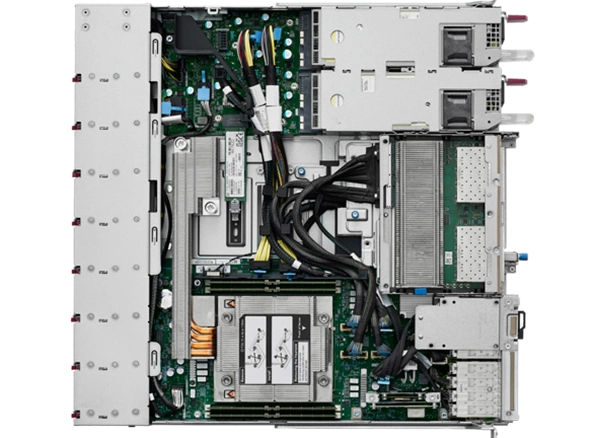

Product Specification of HPE ProLiant Compute DL110 Gen12
Server Type / Form Factor
- Type: Enterprise Edge Rack Server
- Form Factor: 1U Rack
- Socket: Single-socket (1 × Intel® Xeon® 6 SoC Processor)
Processor (CPU)
- Processor Family: Intel® Xeon® 6 SoC Processors
- Max Sockets: 1
- Cores: Up to 40 cores
- Max Speed: Up to 2.5 GHz
- Processor Cache: 160 MB
Memory (RAM)
- Memory Type: HPE DDR5 Smart Memory
- DIMM Slots: 4 DIMM Slots
- Maximum Capacity: Up to 512 GB (with 128 GB DDR5 DIMMs)
Storage
- Drive Support: Up to 2 M.2 NVMe SSDs
- Storage Controller: Software RAID Solution
- RAID Support: Software RAID
Expansion / Connectivity
- Expansion Slots: 2 PCIe Expansion Slots
- Networking: Supports PCIe and OCP 3.0 Network Adapters
- GPU Support: Up to 2 Half-Height Half-Length GPUs or 2 × 100W In-Line Accelerators
Redundancy & Reliability
- Expansion Slots: 2 PCIe Expansion Slots
- Networking: Supports PCIe and OCP 3.0 Network Adapters
- GPU Support: Up to 2 Half-Height Half-Length GPUs or 2 × 100W In-Line Accelerators
Operating System Support
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware ESXi
- Canonical Ubuntu
Security Features
- Immutable Silicon Root of Trust
- UEFI Secure Boot
- Secure Start
- Intel® Software Guard Extensions (SGX)
- Optional Trusted Supply Chain
- HPE iLO Security Modes
- Chassis Intrusion Detection
- Optional Bezel Locking Kit
Management & Monitoring
- HPE iLO 7 Standard: Embedded server management with Intelligent Provisioning
- HPE OneView Standard: Infrastructure management (download required)
- Optional Management: HPE iLO 7 Advanced and HPE OneView Advanced
Warranty & Support
- Standard Warranty: 3 Years Parts, 3 Years Labor, 3 Years Onsite Support
- Optional Support: HPE Foundation Care, HPE Proactive Care, HPE Pointnext Services, and customized enterprise support plans
-
