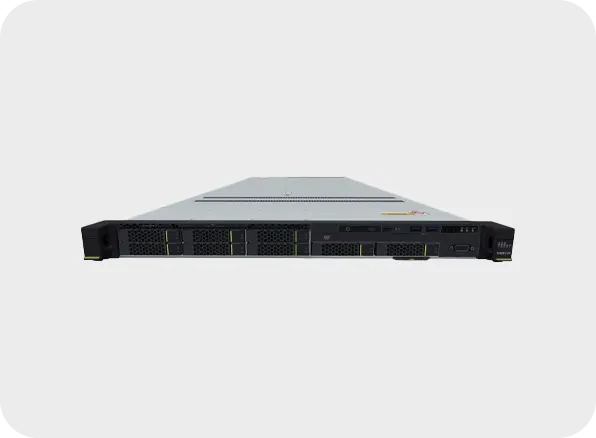

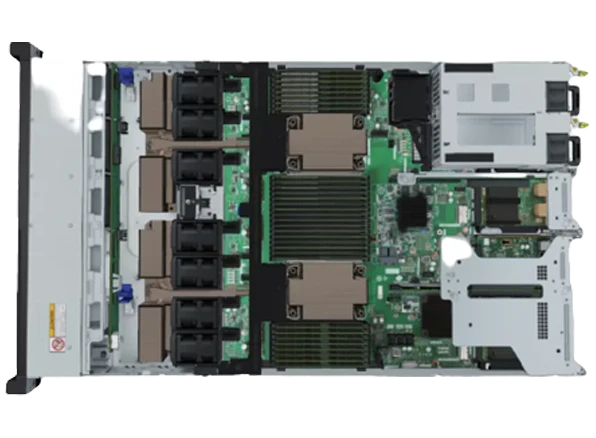

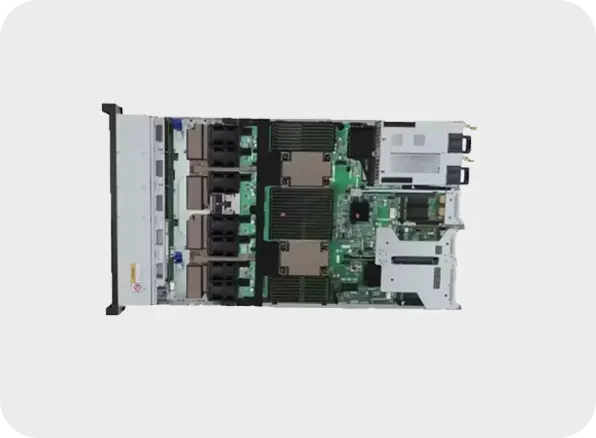

Product Specification of FusionServer 1288H V6 Rack Server
Server Type/Form Factor
1U Rack Server (high-density dual-socket)
Processor (CPU)
One or two 3rd-gen Intel Xeon Scalable (Ice Lake) processors (8300/6300/5300/4300 series), up to 270 W TDP
Memory (RAM)
- Up to 32 × DDR4 DIMM slots, up to 3200 MT/s
- Supports up to 16 Optane PMem 200 modules at 3200 MT/s
Storage
- Choose between 4 × 3.5 or up to 10 × 2.5 hot-swappable SAS/SATA/SSD/NVMe drives
- Dual M.2 SSD slots for OS boot
Expansion/Connectivity
- 6 PCIe slots (including one for RAID, two FlexIO for OCP 3.0 NICs, three PCIe 4.0)
- Supports up to two OCP 3.0 network adapters (400 Gb/s capable)
Redundancy & Reliability
- Dual hot-swappable PSUs in 1+1 redundancy (900 W–2000 W Platinum/Titanium)
- Seven hot-swappable counter-rotating fans (N+1 redundancy)
- Patented Dynamic Energy Management and Fault Diagnosis & Management
Operating System Support
- Microsoft Windows Server
- SUSE Linux Enterprise
- VMware ESXi
- Red Hat Enterprise Linux
- CentOS
- Oracle Linux
- Ubuntu
- Debian
- openEuler
Security Features
- TPM 2.0
- Secure Boot
- Cover intrusion detection
- Administrator and power-on password protection
Management & Monitoring
- iBMC with dedicated GbE for remote management (Redfish, SNMP, IPMI 2.0)
- FusionDirector software for full-lifecycle management, stateless compute, mass OS deployment, and firmware automation
Warranty & Support
- Standard 3-year manufacturer warranty
- Extended setup, integration, and support available via Infome Technologies
-
