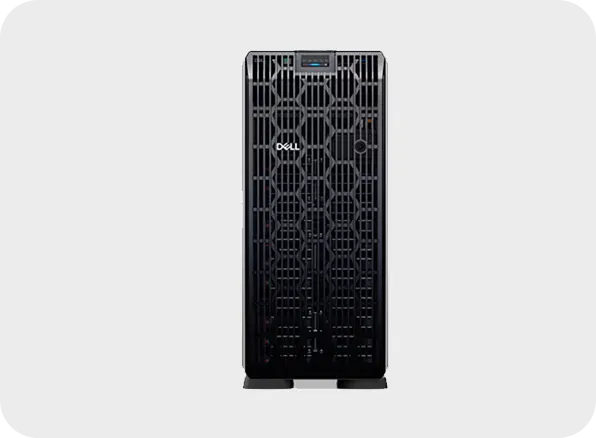

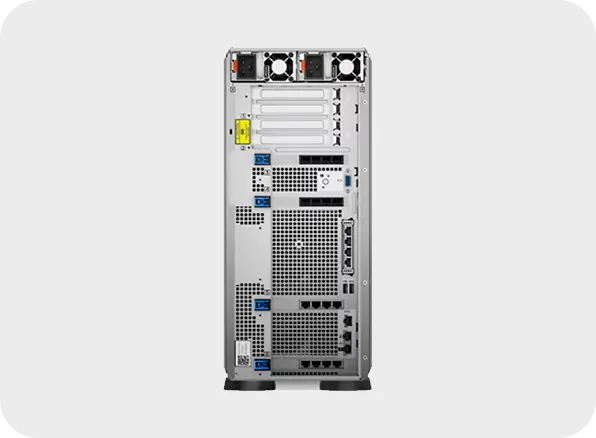

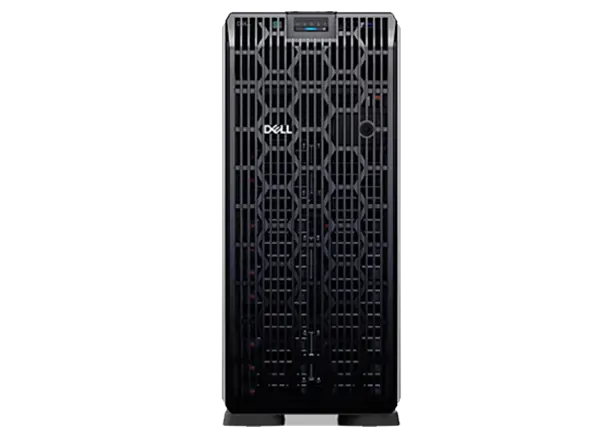

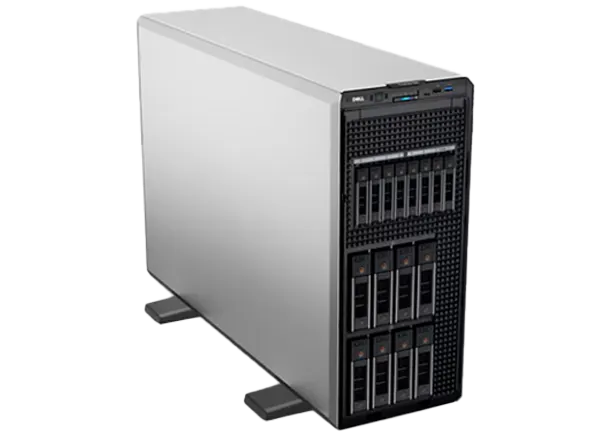

Product Specification of Dell PowerEdge T560 Tower Server
Server Type / Form Factor
- Type: Tower Server (rackable, 4.5U chassis)
- Socket: Dual socket, supports two Intel Xeon Scalable 4th or 5th Gen CPUs
Processor (CPU)
- Supported CPUs: Up to two 4th Generation Intel Xeon Scalable (up to 32 cores/CPU)
- Also supports: 5th Generation Intel Xeon Scalable (up to 28 cores/CPU)
- Max TDP: 250 W per processor
Memory (RAM)
- Type: DDR5 RDIMM ECC only
- DIMM Slots: 16 total (8 per CPU)
- Max Capacity: Up to 1 TB using RDIMM
- Speed: Up to 4800 MT/s (4th Gen) or 5200 MT/s (5th Gen)
Storage
- Front Drive Bays: Up to 12 × 3.5 SAS/SATA HDDs (max 180 TB)
- Alternate: Up to 16 × 2.5 SAS/SATA (max 240 TB) or 24 × 2.5 (max 360 TB)
- Mixed: 8 × 3.5 + 8 × 2.5 NVMe SSDs (max 240 TB)
- Controllers: fPERC H965i, H755N, H755, H355, HBA355i; software RAID S160; BOSS N1 dual M.2 NVMe boot
Expansion / Connectivity
- PCIe Slots: Up to 6 expansion slots (mix of Gen4 and Gen5 x16/x8 full height)
- GPU Support: Up to two 300 W double width or six 75 W single width GPUs
- Networking: Embedded dual 1 GbE LOM (Broadcom 5720); optional OCP 3.0 mezzanine
Redundancy & Reliability
- Power Supplies: Redundant hot plug PSUs: 600 W Platinum, 700 W Titanium HLAC, 800 W, 1100 W, 1400 W, or higher (AC/DC options)
- Cooling: Up to 8 hot plug fans with high performance options for GPU/NVMe configurations
Operating System Support
- Microsoft Windows Server (with Hyper V)
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
- Ubuntu Server LTS
Security Features
- Cyber Resilient Architecture: Silicon based root of trust, protected supply chain
- System Access: Multi Factor Authentication (MFA), role based access control
Management & Monitoring
- Remote Management: iDRAC9 with Lifecycle Controller, dedicated iDRAC port
- Tools: Dell OpenManage Enterprise, OpenManage Mobile, Redfish API
Warranty & Support
- Standard Warranty: 3 Year ProSupport with Next Business Day Onsite
- Optional Upgrades: ProSupport Plus, Mission Critical support
-
