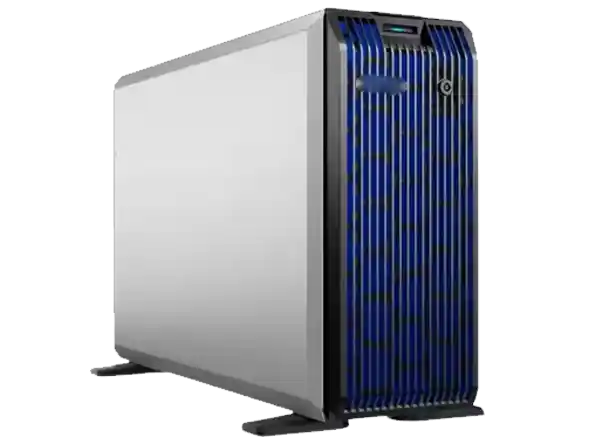

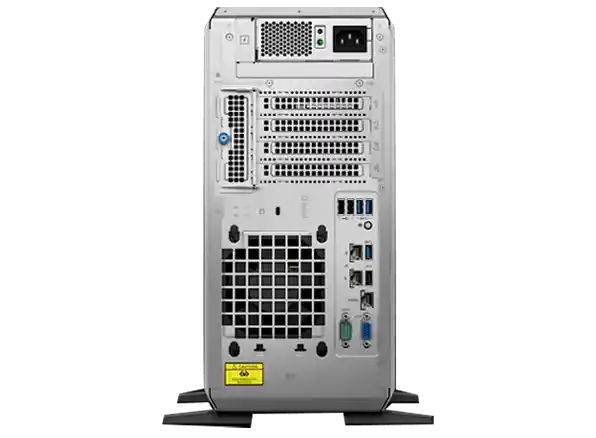

Product Specification of Dell PowerEdge T360 Tower Server
Server Type / Form Factor
- Type: Tower Server
- Form Factor: 4.5 U Tower chassis
- Socket: Single socket (Intel Xeon 6300 series or Xeon E 2400 series up to 8 cores; or Pentium G7400/G7400T, 2 cores)
Processor (CPU)
- Supported CPUs: One Intel Xeon 6300 series or one Intel Xeon E 2400 series processor (up to 8 cores)
- Also supports: Intel Pentium G7400 or G7400T (2 cores)
Memory (RAM)
- Memory Type: DDR5 ECC UDIMM
- DIMM Slots: 4 slots total
- Max Capacity: Up to 128 GB ECC UDIMM
- Speed: Up to 4400 MT/s
Storage
- Drive Bay Options:
- Up to 4 × 3.5 SAS/SATA HDD/SSD (max ~64 TB)
- Up to 8 × 3.5 SAS/SATA (or with adapter 2.5 ) (max ~128 TB)
- Rear Bays: NA
- Controllers: Internal: PERC H355, H755, HBA355i; External: HBA355e; Boot: BOSS N1 dual M.2 NVMe; Software RAID: S160
Expansion / Connectivity
- PCIe Slots: PCIe Gen 5 and Gen 4 expansion slots (config dependent)
- Networking: Embedded dual 1 GbE LOM; supports optional NVIDIA A2 GPU (60 W)
Redundancy & Reliability
- Power Supplies: Single or dual hot plug PSU options: 450 W (cabled), 600 W or 700 W Platinum/Titanium (hot swap capable)
- Cooling: Air cooled design with up to 4 hot swap fans and N+1 redundancy option
Operating System Support
- Microsoft Windows Server with Hyper V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
- Canonical Ubuntu Server LTS
Security Features
- Cryptographically signed firmware and Silicon Root of Trust
- Data at Rest Encryption with Self Encrypting Drives (local or external key management support)
- Secure Boot, Secure Erase, Secured core server, System Lockdown (requires iDRAC9 Enterprise/Datacenter)
- TPM 2.0 (FIPS, CC TCG certified; includes optional China NationZ support)
Management & Monitoring
- iDRAC9 with Lifecycle Controller; iDRAC Direct USB port; RESTful Redfish API; iDRAC Service Module
- Tools: Dell OpenManage Enterprise, CloudIQ; Power Manager, Service and Update Manager plugins; OpenManage Mobile; integrations with VMware vCenter™ and Microsoft System Center; Ansible & Terraform
Warranty & Support
- Standard Warranty: 3 Year Dell Basic Hardware Warranty with Onsite Service (Next Business Day)
- Optional Extended Support: Dell ProSupport or ProSupport Plus available beyond 3 years
-
Server Type / Form Factor
- Type: Tower Server
- Form Factor: 4.5 U Tower chassis
- Socket: Single socket (Intel Xeon 6300 series or Xeon E 2400 series up to 8 cores; or Pentium G7400/G7400T, 2 cores)
-
Processor (CPU)
- Supported CPUs: One Intel Xeon 6300 series or one Intel Xeon E 2400 series processor (up to 8 cores)
- Also supports: Intel Pentium G7400 or G7400T (2 cores)
-
Memory (RAM)
- Memory Type: DDR5 ECC UDIMM
- DIMM Slots: 4 slots total
- Max Capacity: Up to 128 GB ECC UDIMM
- Speed: Up to 4400 MT/s
-
Storage
- Drive Bay Options:
- Up to 4 × 3.5 SAS/SATA HDD/SSD (max ~64 TB)
- Up to 8 × 3.5 SAS/SATA (or with adapter 2.5 ) (max ~128 TB)
- Rear Bays: NA
- Controllers: Internal: PERC H355, H755, HBA355i; External: HBA355e; Boot: BOSS N1 dual M.2 NVMe; Software RAID: S160
- Drive Bay Options:
-
Expansion / Connectivity
- PCIe Slots: PCIe Gen 5 and Gen 4 expansion slots (config dependent)
- Networking: Embedded dual 1 GbE LOM; supports optional NVIDIA A2 GPU (60 W)
-
Redundancy & Reliability
- Power Supplies: Single or dual hot plug PSU options: 450 W (cabled), 600 W or 700 W Platinum/Titanium (hot swap capable)
- Cooling: Air cooled design with up to 4 hot swap fans and N+1 redundancy option
-
Operating System Support
- Microsoft Windows Server with Hyper V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
- Canonical Ubuntu Server LTS
-
Security Features
- Cryptographically signed firmware and Silicon Root of Trust
- Data at Rest Encryption with Self Encrypting Drives (local or external key management support)
- Secure Boot, Secure Erase, Secured core server, System Lockdown (requires iDRAC9 Enterprise/Datacenter)
- TPM 2.0 (FIPS, CC TCG certified; includes optional China NationZ support)
-
Management & Monitoring
- iDRAC9 with Lifecycle Controller; iDRAC Direct USB port; RESTful Redfish API; iDRAC Service Module
- Tools: Dell OpenManage Enterprise, CloudIQ; Power Manager, Service and Update Manager plugins; OpenManage Mobile; integrations with VMware vCenter™ and Microsoft System Center; Ansible & Terraform
-
Warranty & Support
- Standard Warranty: 3 Year Dell Basic Hardware Warranty with Onsite Service (Next Business Day)
- Optional Extended Support: Dell ProSupport or ProSupport Plus available beyond 3 years
