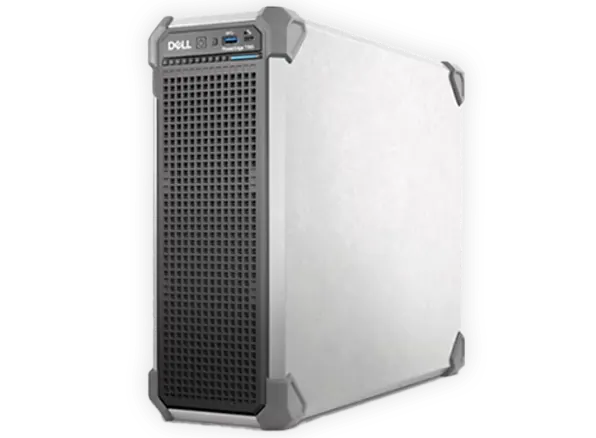

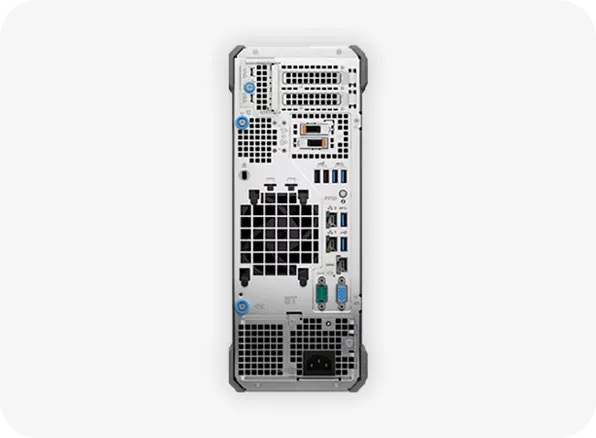

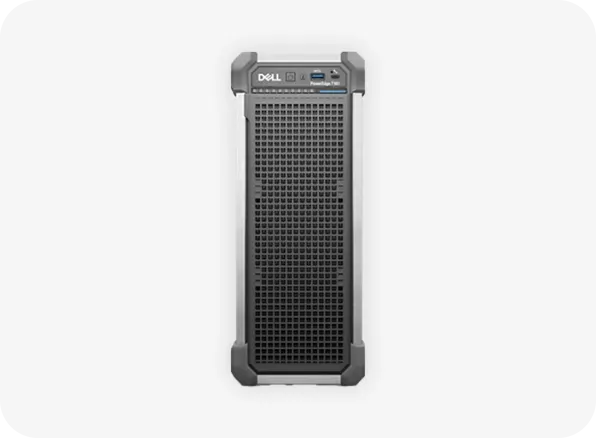

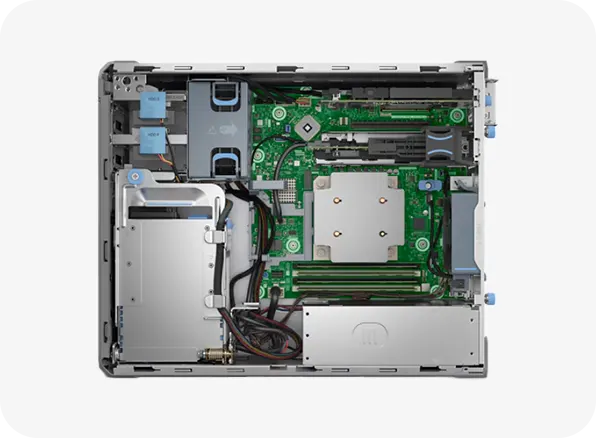

Product Specification of Dell PowerEdge T160 Tower Server
-
Server Type / Form FactorType: Tower Server (compact tower chassis) Socket: Single socket, supports one Intel Xeon E-2400 Series or Intel Pentium processor
-
Processor (CPU)Supported CPUs: Up to one Intel Xeon E-2400 Series processor (up to 8 cores per CPU) Also supports: Intel Pentium G7400 / G7400T processors Max TDP: Up to 95 W per processor
-
Memory (RAM)Type: DDR5 ECC UDIMM only DIMM Slots: 4 total Max Capacity: Up to 128 GB using ECC UDIMM Speed: Up to 5600 MT/s
-
StorageFront Drive Bays: Up to 3 × 3.5 SATA HDDs or 2 × 2.5 SATA SSDs Alternate: Supports SATA HDD, SATA SSD, and optional NVMe boot drives Controllers: Software RAID S160, PERC H355 RAID controller, optional BOSS-N1 dual M.2 NVMe boot
-
Expansion / ConnectivityPCIe Slots: Up to 3 PCIe Gen4 expansion slots Networking: Embedded dual 1 GbE LOM (Broadcom 5720) Optional: Supports 10 GbE network adapters and additional PCIe expansion cards
-
Redundancy & ReliabilityPower Supplies: 300 W or 500 W cabled PSU options Cooling: Integrated system cooling with optimized airflow Error Protection: ECC memory and RAID data protection support
-
Operating System SupportMicrosoft Windows Server (with Hyper-V) Red Hat Enterprise Linux SUSE Linux Enterprise Server Ubuntu Server LTS
-
Security FeaturesCyber Resilient Architecture: Silicon-based root of trust, secure boot support System Security: TPM 2.0, signed firmware, and system lockdown features
-
Management & MonitoringRemote Management: iDRAC9 with Lifecycle Controller, dedicated iDRAC port Tools: Dell OpenManage Enterprise, OpenManage Mobile, Redfish API
-
Warranty & SupportStandard Warranty: 3 Year Dell Warranty with ProSupport options Optional Upgrades: ProSupport Plus and extended enterprise support
