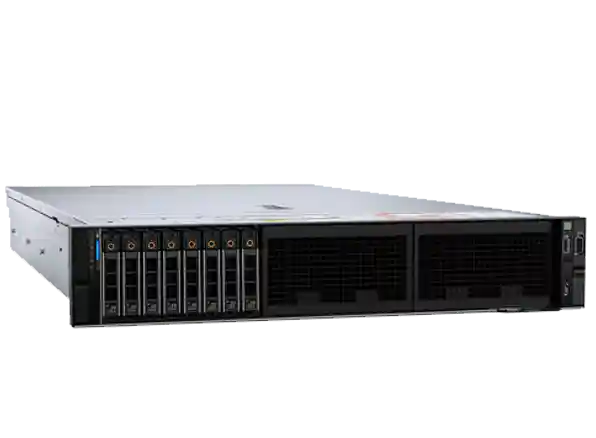

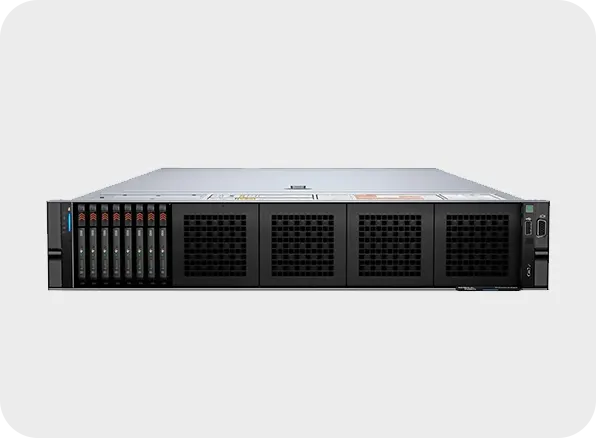

Product Specification of Dell PowerEdge R860 Rack Server
-
Server Type / Form Factor
- Type: Rack Server
- Form Factor: 2U rackmount
- Socket: Quad-socket (supports up to 4 Intel Xeon Scalable CPUs)
-
Processor (CPU)
- Supported CPUs: Up to 4 × 4th Generation Intel Xeon Scalable Processors, up to 60 cores per CPU
-
Memory (RAM)
- Memory Type: DDR5 RDIMM ECC only
- DIMM Slots: 64 DIMMs total
- Max Capacity: Up to 16 TB memory
- Speed: Up to 5600 MT/s (supported speeds: 5600/4800/4400 MT/s)
-
Storage
- Drive Bay Options:
- Up to 32 × 2.5 SAS/SATA HDD/SSD
- Up to 24 × 2.5 NVMe SSD
- Up to 16 × EDSFF E3.S Gen5 NVMe SSD
- Max Storage: Up to ~491 TB (configuration-dependent)
- Controllers: PERC H965i, H755, H355, HBA355i; BOSS N1 for dual M.2 boot; Software RAID S160
- Drive Bay Options:
-
Expansion / Connectivity
- PCIe Slots: Up to 12 × PCIe Gen5 slots (mixture of full-height and low-profile)
- GPU Support: Up to 4 × 400 W double-width GPUs
- Networking: Embedded dual 1 GbE LOM; optional OCP 3.0 mezzanine slot
-
Redundancy & Reliability
- Power Supplies: Redundant hot-plug PSUs: 1100 W, 1400 W, 1800 W, 2400 W, 2800 W (Titanium/Platinum), or DC 48 V options
- Cooling: Multiple hot swap fans; optional direct-liquid cooling available
-
Operating System Support
- Microsoft Windows Server (Hyper V)
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi
- Ubuntu Server LTS
-
Security Features
- Silicon-based Root of Trust with cryptographically signed firmware
- Secure Boot, Secure Erase, System Lockdown (iDRAC Enterprise required)
- TPM 2.0 (FIPS, CC TCG Certified)
-
Management & Monitoring
- iDRAC9 with Lifecycle Controller and iDRAC Direct (USB)
- RESTful Redfish API; iDRAC Service Module
- System Management Tools: Dell OpenManage Enterprise, CloudIQ, plugin integrations
-
Warranty & Support
- Standard Warranty: 3-Year Basic Hardware Service with Next Business Day Onsite (after remote diagnosis)
- Optional Services: ProSupport and ProSupport Plus for mission-critical coverage and support enhancements
