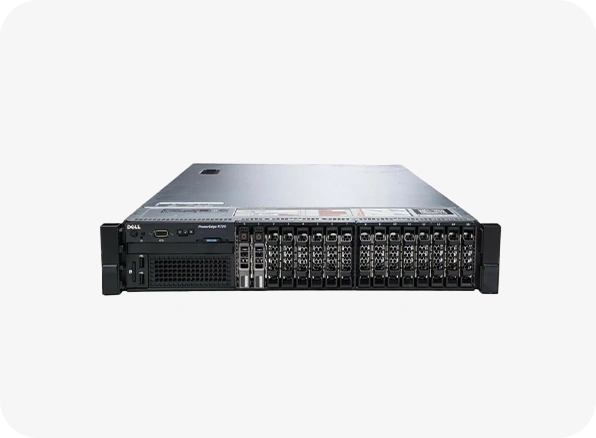

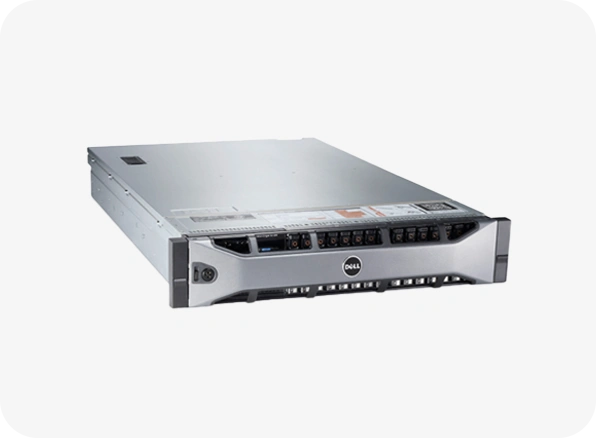

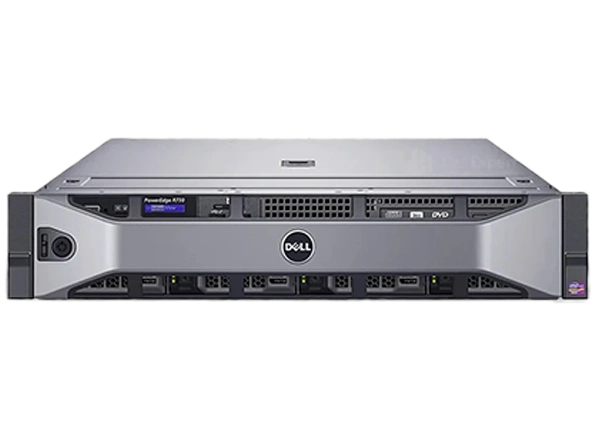

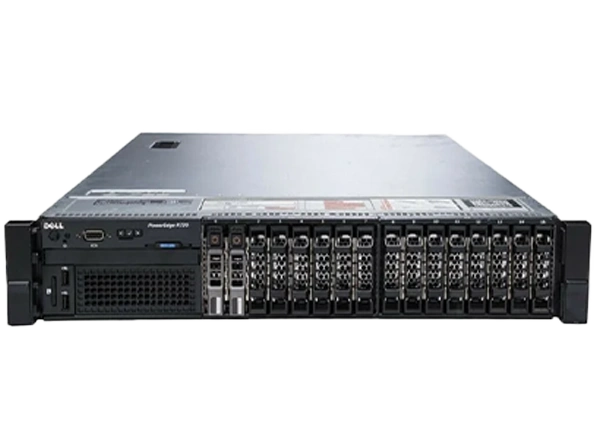

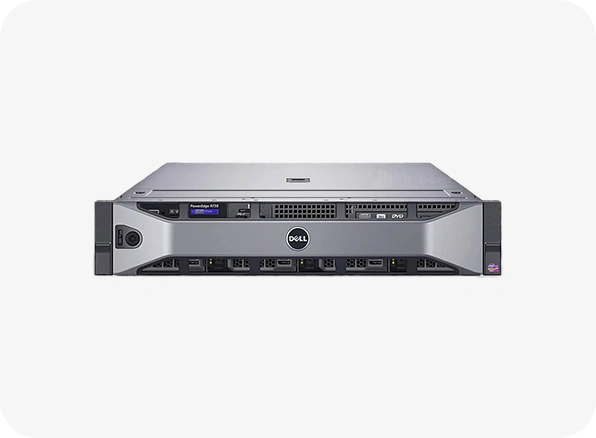

Product Specification of Dell PowerEdge R720 Server
- Brand: Dell
- Generation: 12th Generation
- Type: Enterprise Rack Server
- Form Factor: 2U Rack
- Socket: Dual-socket (Supports up to 2 Intel® Xeon® E5 Processors)
- Processor Family: Intel® Xeon® E5-2600 and Intel® Xeon® E5-2600 v2
- Max Sockets: 2
- Cores per Socket: 4, 6, 8, 10, or 12 cores
- Processor Options: Wide range of Intel® Xeon® E5 processors
- Memory Type: DDR3 ECC Registered Memory
- Supported DIMM Sizes: 2 GB, 4 GB, 8 GB, 16 GB, and 32 GB
- DIMM Slots: 24 DIMM Slots
- Maximum Capacity: Up to 768 GB
- Drive Bays: Up to 8 LFF or 16 SFF Drives
- Drive Types: HDD and SSD
- Supported HDDs: 2.5" SAS (15K/10K), Nearline SAS (7.2K), SATA (7.2K); 3.5" SAS (15K), Nearline SAS (7.2K), SATA (7.2K)
- Supported SSDs: 2.5" SATA SSD, SAS SSD, PCIe SSD
- Maximum Storage: Up to 32 TB
- RAID Support: RAID 0, 1, 5, 6, 10, 50, and 60
- Internal RAID Controllers: PERC S110, PERC H310, PERC H710, PERC H710P
- External RAID Controller: PERC H810
- PCIe Slots: 6 Expansion Slots
- Networking: 4 Integrated LAN Ports
- GPU Support: Intel® Xeon Phi 5110P, 7120P, NVIDIA Tesla K10, K20, K40M, M2090, M2075, M2070Q, AMD FirePro V7800P, S7000, and S9000
- Power Supply: Dual Redundant Power Supplies
- Power Options: 495W, 750W, 1100W AC, or 1100W DC
- Storage: RAID-based redundancy with multiple RAID controller options
- Availability Features: Enterprise-class reliability with redundant power and hot-swappable storage support
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware ESXi
- Canonical Ubuntu
- Citrix Hypervisor
- iDRAC7 with Lifecycle Controller
- Secure Remote Server Management
- Role-Based Access Control
- Firmware Update Management
- Optional Trusted Platform Module (TPM)
- Remote Management: Dell iDRAC7 with Lifecycle Controller Express
- Advanced Management: Dell iDRAC7 Enterprise
- Monitoring: Dell OpenManage Essentials and Dell SupportAssist
- Standard Warranty: Varies by configuration and supplier
- Optional Support: Dell ProSupport, ProSupport Plus, Next Business Day Onsite Service, and customized enterprise support plans
-
Server Type / Form Factor
- Brand: Dell
- Generation: 12th Generation
- Type: Enterprise Rack Server
- Form Factor: 2U Rack
- Socket: Dual-socket (Supports up to 2 Intel® Xeon® E5 Processors)
-
Processor (CPU)
- Processor Family: Intel® Xeon® E5-2600 and Intel® Xeon® E5-2600 v2
- Max Sockets: 2
- Cores per Socket: 4, 6, 8, 10, or 12 cores
- Processor Options: Wide range of Intel® Xeon® E5 processors
-
Memory (RAM)
- Memory Type: DDR3 ECC Registered Memory
- Supported DIMM Sizes: 2 GB, 4 GB, 8 GB, 16 GB, and 32 GB
- DIMM Slots: 24 DIMM Slots
- Maximum Capacity: Up to 768 GB
-
Storage
- Drive Bays: Up to 8 LFF or 16 SFF Drives
- Drive Types: HDD and SSD
- Supported HDDs: 2.5" SAS (15K/10K), Nearline SAS (7.2K), SATA (7.2K); 3.5" SAS (15K), Nearline SAS (7.2K), SATA (7.2K)
- Supported SSDs: 2.5" SATA SSD, SAS SSD, PCIe SSD
- Maximum Storage: Up to 32 TB
- RAID Support: RAID 0, 1, 5, 6, 10, 50, and 60
- Internal RAID Controllers: PERC S110, PERC H310, PERC H710, PERC H710P
- External RAID Controller: PERC H810
-
Expansion / Connectivity
- PCIe Slots: 6 Expansion Slots
- Networking: 4 Integrated LAN Ports
- GPU Support: Intel® Xeon Phi 5110P, 7120P, NVIDIA Tesla K10, K20, K40M, M2090, M2075, M2070Q, AMD FirePro V7800P, S7000, and S9000
-
Redundancy & Reliability
- Power Supply: Dual Redundant Power Supplies
- Power Options: 495W, 750W, 1100W AC, or 1100W DC
- Storage: RAID-based redundancy with multiple RAID controller options
- Availability Features: Enterprise-class reliability with redundant power and hot-swappable storage support
-
Operating System Support
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware ESXi
- Canonical Ubuntu
- Citrix Hypervisor
-
Security Features
- iDRAC7 with Lifecycle Controller
- Secure Remote Server Management
- Role-Based Access Control
- Firmware Update Management
- Optional Trusted Platform Module (TPM)
-
Management & Monitoring
- Remote Management: Dell iDRAC7 with Lifecycle Controller Express
- Advanced Management: Dell iDRAC7 Enterprise
- Monitoring: Dell OpenManage Essentials and Dell SupportAssist
-
Warranty & Support
- Standard Warranty: Varies by configuration and supplier
- Optional Support: Dell ProSupport, ProSupport Plus, Next Business Day Onsite Service, and customized enterprise support plans
