Server Type / Form Factor |

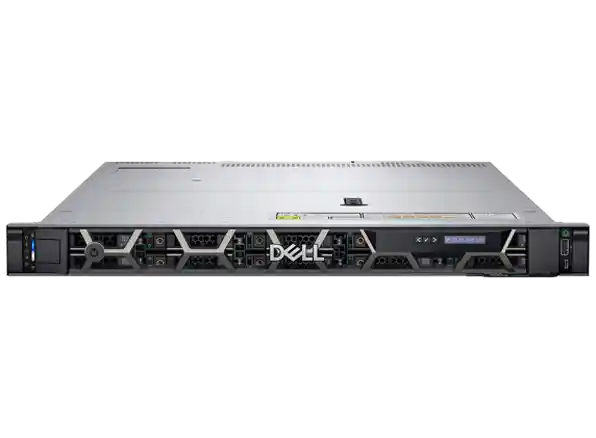

- Type: Rack Server
- Form Factor: 1U Rackmount
- Socket: Dual socket (supports up to two 3rd Generation Intel Xeon Scalable processors, up to 32 cores/socket)
|
- Type: Rack Server
- Form Factor: 2U Rackmount
- Socket: Dual socket (supports 4th or 5th Gen Intel Xeon Scalable up to 64 cores/socket)
|
|
Processor (CPU) |
- Supported CPUs: Up to two 3rd Generation Intel Xeon Scalable processors (up to 32 cores per socket)
- Max TDP: ~220 W per processor
|
- Supported CPUs: Up to two 5th Gen Intel Xeon Scalable (up to 64 cores/thread per socket, TDP up to 350 W)
- Also supports: 4th Gen Xeon Scalable (up to 60 cores/socket, 350 W TDP)
|
|
Memory (RAM) |
- Memory Type: DDR4 RDIMM ECC
- DIMM Slots: 16 slots total
- Max Capacity: Up to 1 TB
- Speed: Up to 3200 MT/s
|
- Memory Type: DDR5 RDIMM (TruDDR5) ECC
- DIMM Slots: Up to 32 DIMM slots (16 per CPU)
- Max Capacity: Up to 8 TB using 256 GB 3DS RDIMMs
- Speed: Up to 5600 MT/s (5th Gen) or 4800 MT/s (4th Gen)
|
|
Storage |
- Drive Bay Options:
- Up to 4 × 3.5 SAS/SATA HDD/SSD (max ~64 TB)
- Up to 8 × 2.5 SAS/SATA/NVMe (max ~61.44 TB)
- Up to 10 × 2.5 SAS/SATA/NVMe (max ~76.8 TB)
- Rear Bays: Up to 2 × 2.5 SAS/SATA/NVMe (max ~15.36 TB)
- Controllers: Internal: PERC H345, H355, H745, H755, H755N; HBA355i; S150; Boot: BOSSS1 dual M.2; External: PERC H840, HBA355e
|
- Drive Bay Options:
- Front: up to 12 × 3.5 or 24 × 2.5 hot swap bays
- Middle: up to 4 × 3.5 or 8 × 2.5 hot swap bays
- Rear: up to 4 × 3.5 or 8 × 2.5 hot swap, plus optional 2 × 7 mm boot bays
- Boot Options: Internal 2 × M.2 SATA/NVMe drives in RAID
- Controllers: Supports VROC/VMD, onboard SW RAID; optional hardware RAID/HBA adapters
|
|
Expansion / Connectivity |
- PCIe Slots: Up to 3 PCIe Gen 4 slots (config dependent)
- Networking: Embedded dual 1 GbE LOM; optional OCP 3.0 mezzanine slot
|
- PCIe Slots: Up to 12 PCIe Gen 4/5 slots plus 1 × OCP 3.0 mezzanine slot; up to 10 rear accessible PCIe slots
- GPU Support: Up to 8 single-width GPUs or 3 double-width GPUs
- Networking: LOM via OCP 3.0 slot or optional NIC adapters
|
|
Redundancy & Reliability |
- Power Supplies: Hot plug redundant PSUs: 600 W, 700 W, 800 W, 1100 W, 1400 W, 1800 W (Platinum/Titanium options AC/DC)
- Cooling: Air cooled; up to 7 cabled fans; standard, high performance (SLVR/GOLD) options
|
- Power Supplies: Dual hot plug redundant PSUs: 750 W – 2600 W, Platinum/Titanium (AC & DC options)
- Cooling: Air cooled with N+1 hot swap fans (5 6 depending on config), supports performance and standard fan types
|
|
Operating System Support |
- Microsoft Windows Server with Hyper V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise Server
- VMware ESXi / vSAN
- Canonical Ubuntu Server LTS
- Citrix Hypervisor
|
- Microsoft Windows Server including 2022
- Red Hat Enterprise Linux 8.x/9.x
- SUSE Linux Enterprise Server 15 SP4/SP5+ or later
- VMware ESXi including 7.0 U3 or later
|
|
Security Features |
- Cryptographically signed firmware; Silicon Root of Trust
- Secure Boot, Secure Erase, System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 1.2/2.0 (FIPS, CC TCG certified; TCM 2.0 optional)
|
- Lenovo XClarity Controller 2 (service processor)
- Embedded TPM 2.0 with PFR (Platform Firmware Resiliency); chassis intrusion, administrator password security
- Optional lockable bezel available
|
|
Management & Monitoring |
- iDRAC9 with Lifecycle Controller; iDRAC Direct USB port; RESTful Redfish API; iDRAC Service Module
- Tools: Dell OpenManage Enterprise; Power Manager, SupportAssist, Update Manager plugins; CloudIQ; OpenManage Mobile; integrations with VMware vCenter, Microsoft System Center; Ansible, Terraform support
|
- Lenovo XClarity Controller (XCC2) with remote KVM over dedicated port
- Integration via XClarity Administrator, Energy Manager, REST API support
|
|
Warranty & Support |
- Standard Warranty: 3 Year Dell Basic Hardware Warranty with 5×10 Next Business Day Onsite Service
- Optional Extended Support: Dell ProSupport or ProSupport Plus available beyond 3 years
|
- Standard Warranty: 3 Year Customer Replaceable Unit & Onsite Service
- Optional Upgrades: 4 hour, 2 hour response, or extended up to 5 year coverage via Lenovo Services
|
